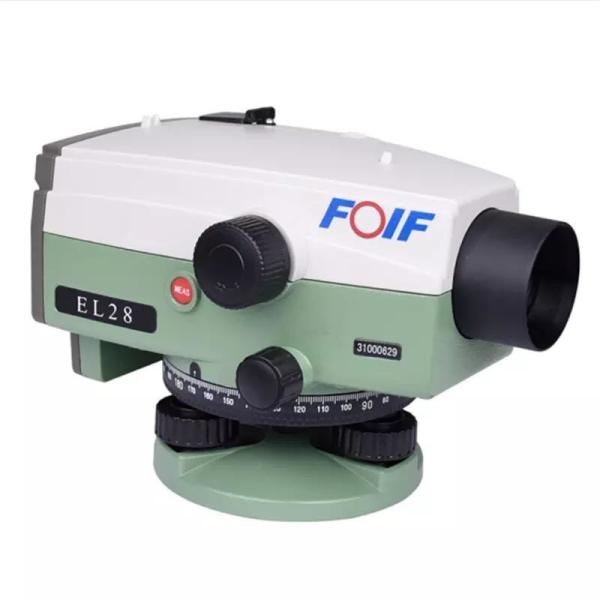

Measuring Automatic Level Machine 28X Dumpy Level Accuracy 1.5mm

Name: Measuring Automatic Level Machine 28X Dumpy Level Accuracy 15mm
Brand: FOIF
Price: 400 USD

Quality Measuring Automatic Level Machine 28X Dumpy Level Accuracy 1.5mm for sale

Brand Name : FOIF

Model Number : EL28

Certification : ISO

Place of Origin : China

MOQ : 1 Piece

Price : 400USD~500USD

Payment Terms : T/T

Supply Ability : 100 pieces per month

Delivery Time : 10~20 Work Day

Packaging Details : Carton

Model : EL28

Brand : FOIF

Compensator : Magnetic-Damped

Magnification : 28X

Objective Apeture : 45mm

Accuracy 1km double run : 1.5mm

Minimum Focus : 0.8m

Water Proof : IP54

Contact Now

High Precision Automatic Measuring Surveying Instrument 28X Digital Level FOIF EL28

Model: EL28

Specifications:

Brand	FOIF
Model	EL28
Compensator	Magnetic-Damped
Magnification	28X
Objective Apeture	45mm
Accuracy 1km double run	1.5mm
Minimum Focus	0.8m
Water Proof	IP54

Features:

· Easy one-touch operation, simply push the trigger key

· Quicker and easier than an optical level Efficiency increased by 30%

· The battery could work more than one week, compact design

· Quick height and distance result-the reading is displayed almost instantly with measurement

· Advance compensator checking button

Detailed Data Sheet:

Model	EL28
Accuracy
Standard deviation of km double run
Electronic measurement	+/-1.5mm*
Optical measurement	+/- l.5mm*
Electronic measurement
Time for single measurement	≤2s
Range	2-80m
Measurement modes	Singel, tracking
Display resolution(m/in selectable)
Height	1mm/0.01ft
Distance	10mm/0.1ft
Telescope
Clear objective aperature	45mm
Magnification	28x
Field of view at 100m	2.6m
Shortest focus distance	0.8m
Automatic compensator
Working range	15'
Setting accuracy	+/-0.4"
Power
Battery	2000mAh Ni-MH rechargeable
Continuous operating time	40 hours
Measurement programs
On-board programs	DH,inverse staff measurement I error checking and adjustment
Others
Display	Segment display
Keyboard	Function key board,6 keys
Interface	RS232
Sensitivity of circular level	8'/2mm
Water and dusp protection	IP54
Operating temperature	-20°C~50°C
Net weight	2kg

Detailed Pictures:
